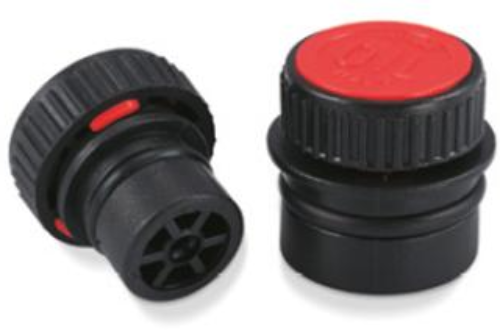

The R.OL.TPBS low-profile push-fit breather cap is a compact solution for ventilating oil and hydraulic reservoirs. The cap is pressed directly into the tank opening without threads and securely retained by two O-rings. Ventilation openings on the underside of the cap provide high airflow capacity, while the low-profile design minimises the required installation space.
Features
- Low-profile push-fit breather cap
- Threadless mounting
- High ventilation capacity
- Ventilation openings on the underside
- Compact design with low installation height
- Manufactured from Polyamide 66
- Ribbed profile for improved grip
- Double O-ring for secure mounting
- Oil-resistant NBR 70 Shore O-rings
- Recommended bore tolerance: 0 to +0.1 mm
- High mechanical strength
- Maximum operating temperature: 100 °C (up to 121 °C for short periods)
- Black version with red top
- Graphic filling symbol and “OIL” marking
Specifications
| Description | Low-profile push-fit breather cap |
| Material | Polyamide 66 |
| Thread | None |

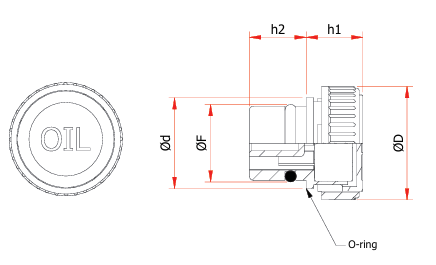

| Code | F (mm) | D (mm) | d (mm) | h1 (mm) | h2 (mm) |
|---|---|---|---|---|---|
| R.OL.TPBS-18 | 18 | 30 | 23 | 14 | 14 |
| R.OL.TPBS-20 | 20 | 30 | 24 | 14 | 15,5 |
| R.OL.TPBS-26 | 26 | 30 | 30 | 14 | 16,5 |
| R.OL.TPBS-30 | 30 | 30 | 34 | 14 | 17 |
