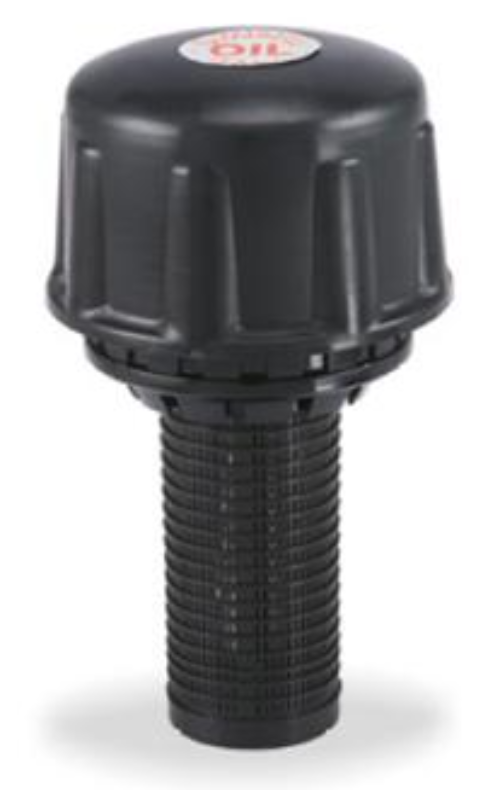

The R.OL.CTR breather cap with strainer is a robust tank cap for hydraulic reservoirs, combining ventilation, filtration and an integrated filler strainer. The cap features a 50-micron polyurethane air filter and a polypropylene strainer basket, protecting both the incoming air and the oil during filling against contamination. Thanks to the clamp mounting system, the breather cap can be mounted directly onto the reservoir without drilling or tapping mounting holes.
Features
- Breather cap with integrated strainer basket
- Suitable for use as a tank cap
- Version without safety chain
- Breather cap made from black Polyamide 66
- 50-micron polyurethane air filter
- Air filter easily removable and cleanable
- Strainer basket made from black polypropylene
- Maximum strainer basket temperature: 80 °C
- Main body made from technopolymer
- NBR 70 Shore O-ring seal
- Installation without drilling or tapping holes
- Suitable for reservoir openings up to 55.3 mm
- High airflow capacity
- Robust design for hydraulic reservoirs
Specifications
| Code | R.OL.CTR |
| Description | Breather cap with strainer |
| Filter material | Polyurethane |
| Seal | NBR 70 Shore O-ring |
| Airflow | 300 l/min at 50 mbar |

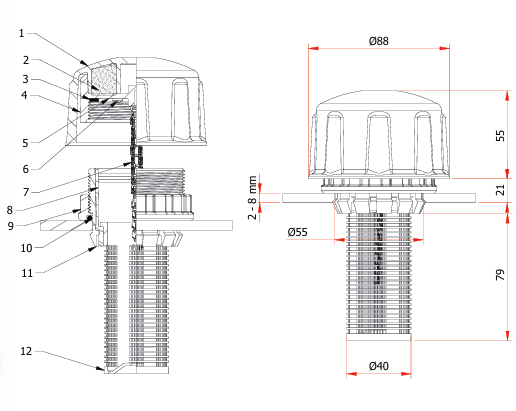

| Nr. | Description |
|---|---|
| 1 | Filler breather cap |
| 2 | Polyurethane air filter |
| 3 | Inner Cap threaded M60x2 |
| 4 | NBR flat seal |
| 5 | Breather holes |
| 6 | Self tapping screw (3x) |
| 7 | Safety chain (not included with this version) |
| 8 | Quick fastening coupling |
| 9 | Locking ring (external) |
| 10 | O-Ring |
| 11 | Internal locking ring |
| 12 | Filtering basket |
