The R.PS.AL press-fit dipstick is designed for quick and easy oil level checking in tanks and reservoirs. The dipstick is pressed directly into a suitable opening and is available with 2 O-ring seals. The standard dipstick is 183 mm long and can be customised for larger order quantities.
Features
- Press-fit dipstick for oil level checking
- Threadless mounting
- 2 O-rings
- Handle made from thermoplastic Polyamide 66
- High mechanical strength
- Good dimensional stability
- Good impact resistance
- Maximum operating temperature: 100 °C (up to 121 °C for short periods)
- Steel dipstick with zinc phosphate protective coating
- Standard dipstick length: 183 mm
- Custom dipstick length available from 250 pieces
- Custom MIN/MAX markings available from 250 pieces
- NBR 70 Shore O-ring
- Various diameters available

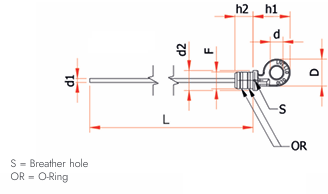

Specifications
| Code | R.PS.AL-2-18 |
| Description | Press-fit dipstick |
| Dipstick length | 183 mm |
| Seal | 2 NBR 70 Shore O-rings |
| ø F | 18 |
| D | 32 |
| d | 14 |
| d1 | 5 |
| h2 | 21 |
| h1 | 44 |
