Compressed Air System with John Guest Push-Fit Fittings
Build your own professional compressed air system quickly and easily
Would you like to install a compressed air system yourself or expand an existing installation? With the John Guest Speedfit system, you can build a professional compressed air network quickly and easily—without threading, welding or using adhesives.
The tubing simply pushes into the fittings and is immediately ready for use. Thanks to this unique push-fit system, virtually any maintenance or technical department can install a reliable compressed air system.
Why choose John Guest?
The John Guest Speedfit system has been developed to make compressed air pipe installation faster, easier and more reliable.

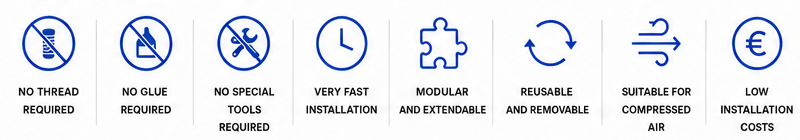

- Easy installation
- No special tools required
- Easy to expand
- Low maintenance
If you have a compressor and want to install a reliable compressed air system yourself, John Guest is one of the easiest systems available.

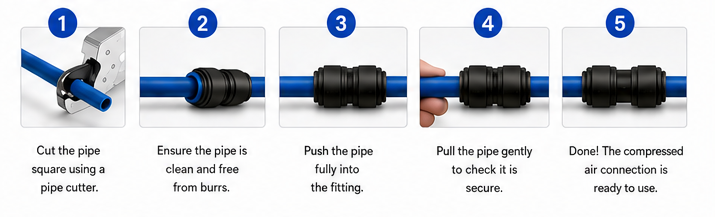

Install in 5 easy steps
- Cut the tube square.
- Ensure the tube is free from burrs.
- Push the tube fully into the fitting.
- Check that the tube is securely locked in place.
- Your compressed air system is immediately ready for use.
Always use a suitable tube cutter instead of a hacksaw to prevent damage to the O-ring.
Installation tips
- Use a tube cutter, never a hacksaw.
- Do not file or chamfer the tube end to avoid damaging the O-rings.
- Always work cleanly: tubes and fittings must be free from dust and burrs.
- Push the tube fully home to ensure full flow and a leak-tight connection.
- For long pipe runs, allow for expansion loops. For vertical risers, secure the horizontal sections first, pressurise the system, and only then clamp the vertical sections.
- For condensate management, use water separators (e.g. PMTT22E) instead of creating a swan-neck trap.
Frequently asked questions
Can I easily expand the system later?
→ Yes. The system is modular, making it easy to add, relocate or replace connection points without downtime.
Will it work with my existing tubing?
→ Yes. It is compatible with PA, PE and PUR plastic tubing, as well as soft metal tubing that meets the required tolerances.
Do I need special tools?
→ No. The push-fit system requires no adhesives or thread cutting. However, a quality tube cutter is strongly recommended.
Ready to speed up your compressed air project?
Contact us for advice, system design and a quotation, or request a site survey today.

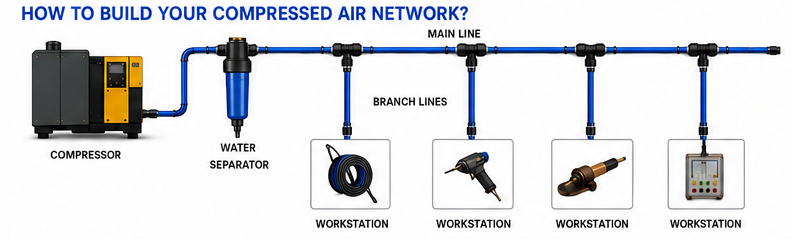

We'll help you choose between coiled tubing (flexible) or straight lengths (industrial installations), the right fittings, condensate management solutions and the optimum tube diameters for every point of use.
